Rigid Glass Solar Panel Monocrystalline 10W 25W 50W 100W 200W Power Generation PV Panel Charge Paneles Solares
Rigid Glass Solar Panel Monocrystalline 10W 25W 50W 100W 200W Power Generation PV Panel Charge Paneles Solares
⏰ ¡alta demanda! - Últimas unidades ⏰
No se pudo cargar la disponibilidad de retiro
XINPUGUANG Rigid Glass Solar Panel Monocrystalline 10W 25W 50W 100W 200w Power Generation PV Panel charge paneles solares
Glass solar panels have a 25-year lifespan
This link has:

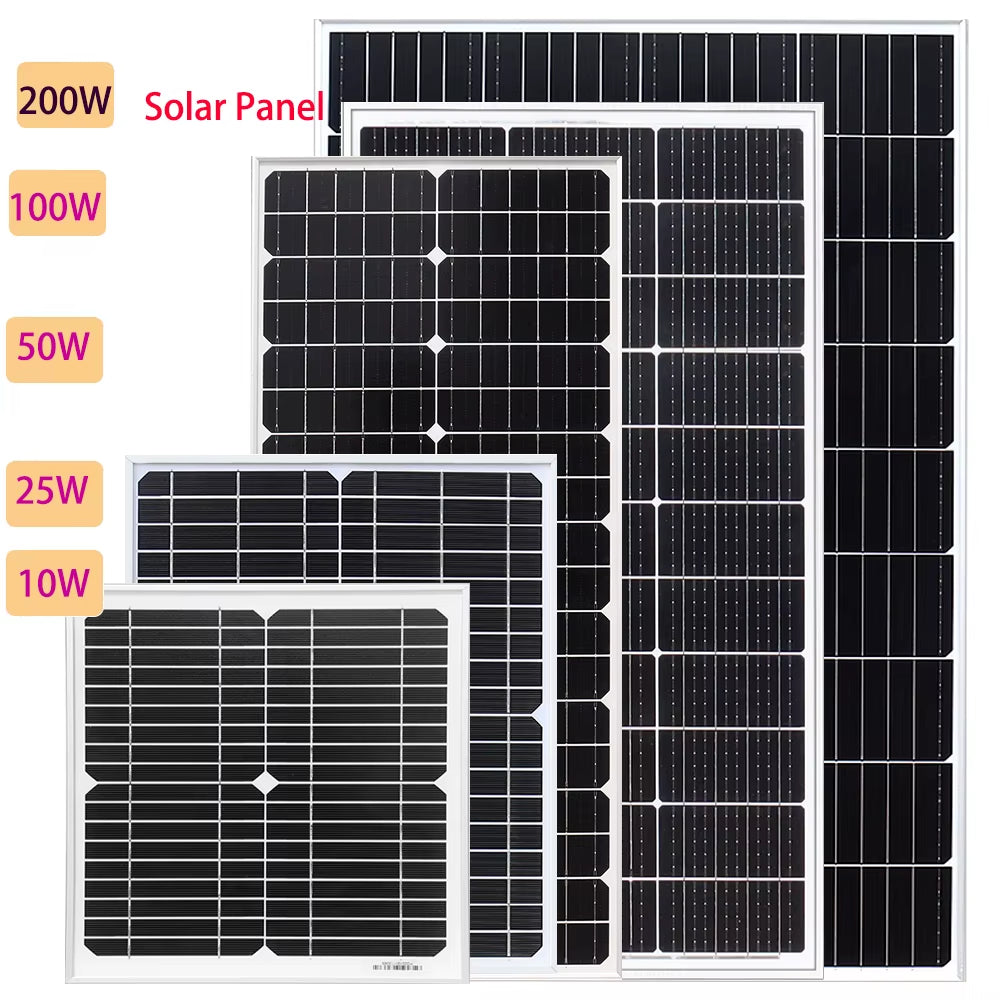

10W / 25W / 50W / 100W / 200W five glass solar panels to choose from, you are careful to choose the solar panel you need power when you place your order
Features:
【Reliable】Advanced encapsulation material with multi-layered sheet laminations enhance cell performance and provide a long service life.
【Durable】 positive output tolerance (0-3%); withstands high winds (2400Pa) and snow loads (5400Pa).
【Versatile】Use it for your RV when camping, or during beach trips with the family, either way this monocrystalline panel provides you with the most efficiency per space.
【Installation Ready】Pre-drilled holes on the back of the panel allow for fast mounting and securing. Pre-drilled holes included for grounding. Compatible with different mounting systems such as Z-Brackets, Pole Mounts and Tilt Mounts.
Reliable
Advanced encapsulation material with multi-layered sheet laminations enhance cell performance and provide a long service life
EL tested solar modules; no hot-spot heating guaranteed
Bypass diodes minimize power drop caused by shade and ensure excellent performance in low-light environments
TPT back sheet ensures smooth performance over a long period of time

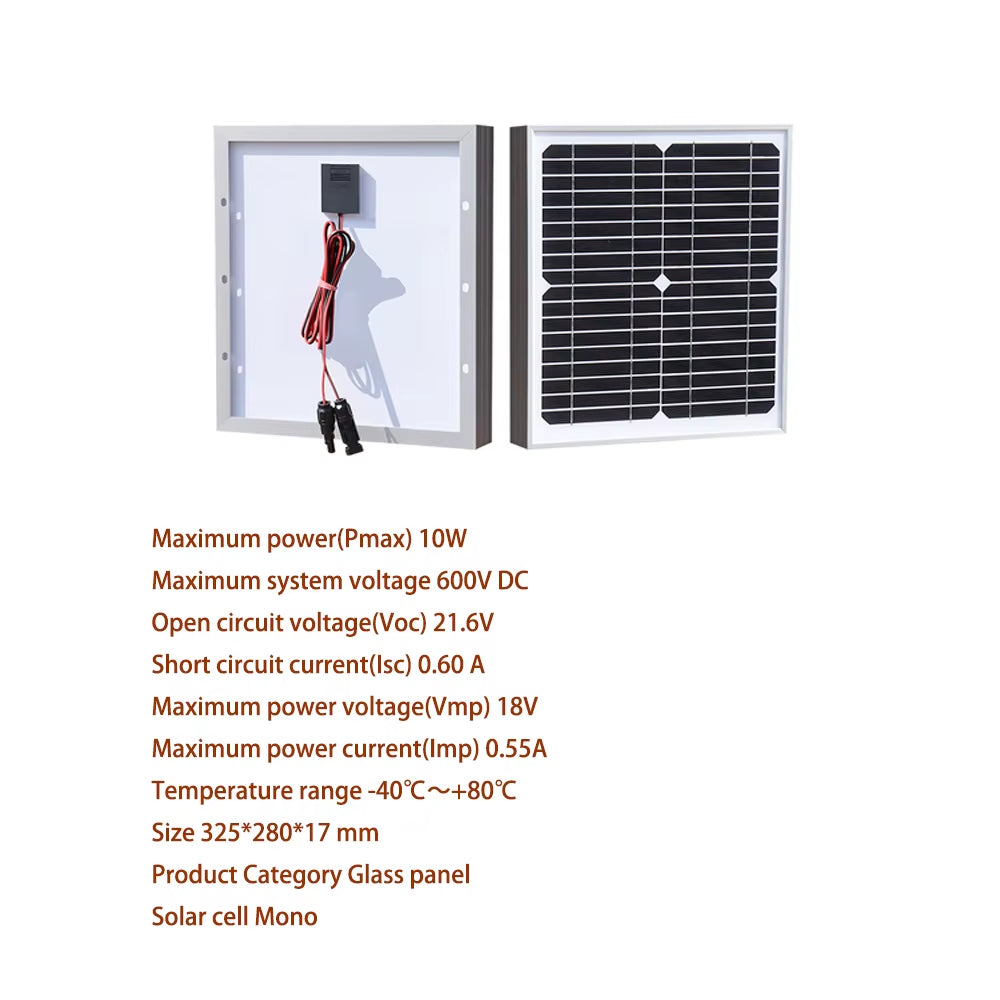

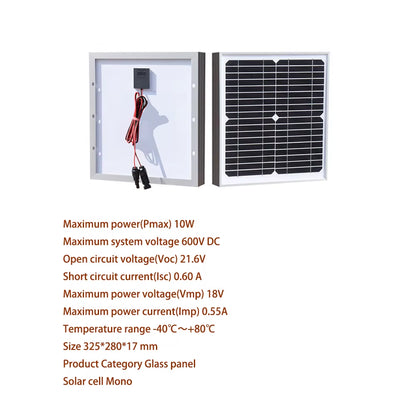

10W Glass Solar panel Specification:
Output tolerance ± 3%
Maximum system voltage 1000V DC
Open circuit voltage(Voc) 21.6V
Short circuit current(Isc) 0.61A
Maximum power voltage(Vmp) 18V
Maximum power current(Imp) 0.55A
Cell efficiency 21%
Operating temperature(NOCT) 45±2℃
Temperature range -40℃～+80℃
Cell Monocrystalline silicon
Number of cells 36pcs
Weight 1100g
Size 325*280*17mm
Surface material Toughened glass
Back film Color White
Output port 2 m long pv connector wire
Waterproof Yes
Standard Test Conditions : lrradiance 1000w/m^2,Temperature 25℃, AM=1.5

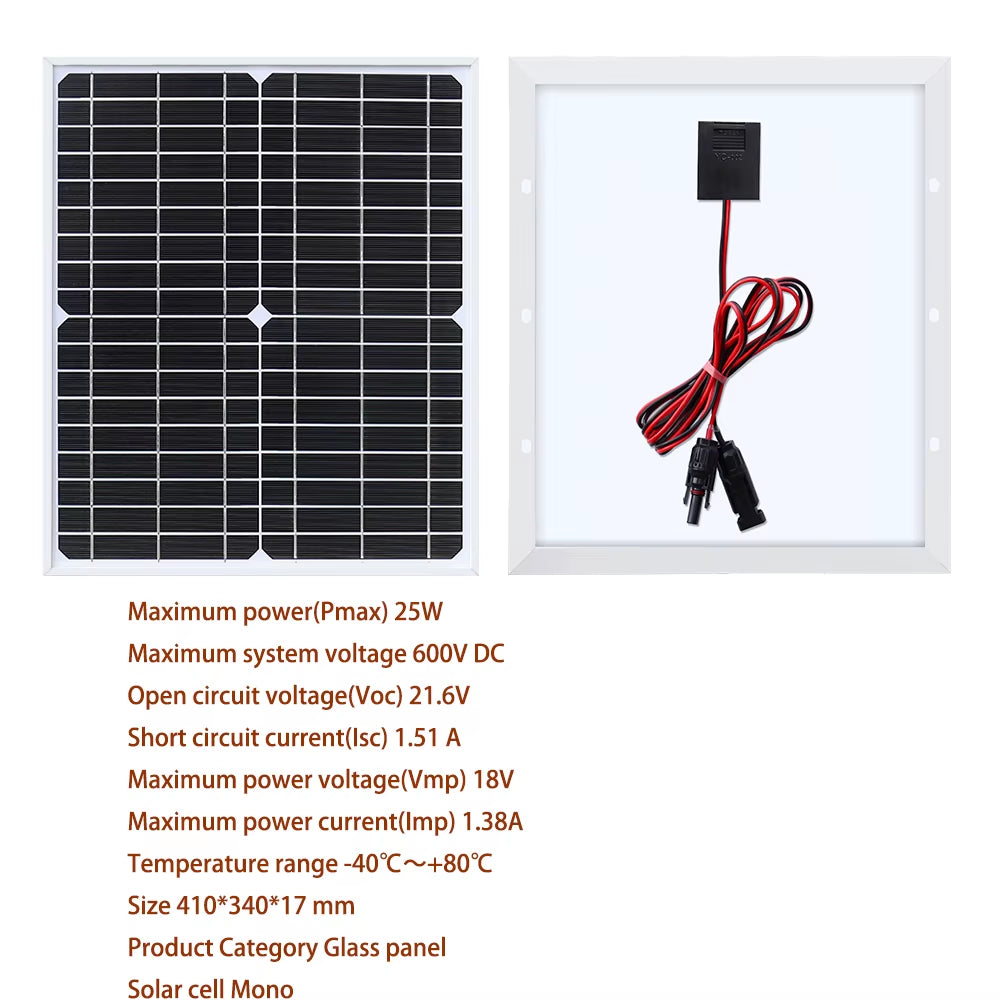

Maximum power(Pmax) 25W
Output tolerance ± 3%
Maximum system voltage 600V DC
Open circuit voltage(Voc) 21.6V
Short circuit current(Isc) 1.51 A
Maximum power voltage(Vmp) 18V
Maximum power current(Imp) 1.38A
Cell efficiency 23%
Operating temperature(NOCT) 45±2℃
Temperature range -40℃～+80℃
Number of cells 36pcs
Size 410*340*17 mm
Product Category Glass panel
Solar cell Mono
Standard Test Conditions : lrradiance 1000w/m2,Temperature 25℃,AM=1.5

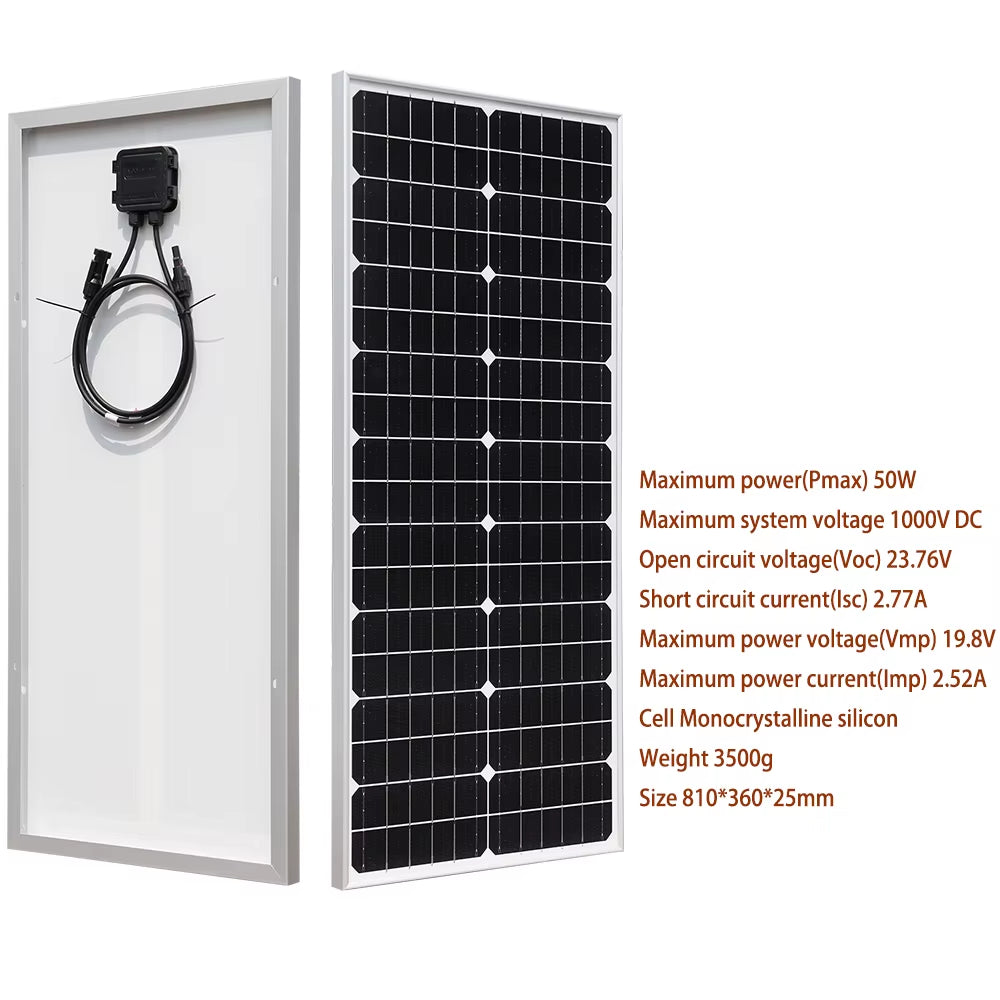

Maximum power(Pmax) 50W
Output tolerance ± 3%
Maximum system voltage 1000V DC
Open circuit voltage(Voc) 23.76V
Short circuit current(Isc) 2.77A
Maximum power voltage(Vmp) 19.8V
Maximum power current(Imp) 2.52A
Cell efficiency 24%
Operating temperature(NOCT) 45±2℃
Temperature range -40℃～+80℃
Cell Monocrystalline silicon
Number of cells 36pcs
Weight 3500g
Size 810*360*25mm
Surface material Toughened glass
Back film Color White
Output port 0.5 m long MC 4 connector wire
Standard Test Conditions : lrradiance 1000w/m^2,Temperature 25℃, AM=1.5
Specification:

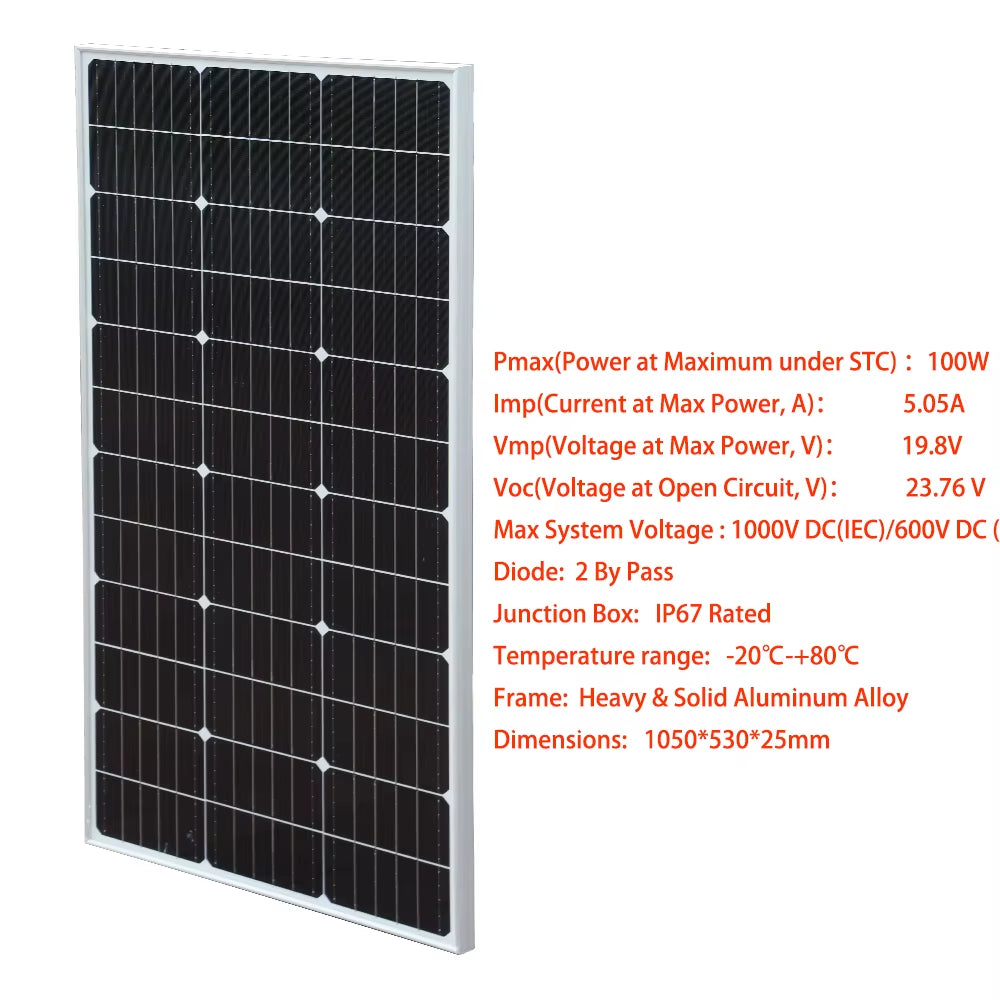

Pmax(Power at Maximum under STC) :100W
Imp(Current at Max Power, A): 5.05A
Vmp(Voltage at Max Power, V): 19.8V
Voc(Voltage at Open Circuit, V): 23.76 V
Output Tolerance: ±5%
Max System Voltage : 1000V DC(IEC)/600V DC (UL)
Diode: 2 By Pass
Junction Box: IP67 Rated
Temperature range: -20℃-+80℃
Frame: Heavy & Solid Aluminum Alloy
Kind of Glass: 3.2mm Tempered glass
Output Cable: 2.5mm?/14AWG 90mm/3.54＂
Dimensions: 1050*530*25mm /970*530*25mm
STC:Irradiance 1000w/m? Temperature 25℃ AM=1.5
Max power should be tested in sunning weather 12:00-14:00am,no Shelter and Sun vertical angle.

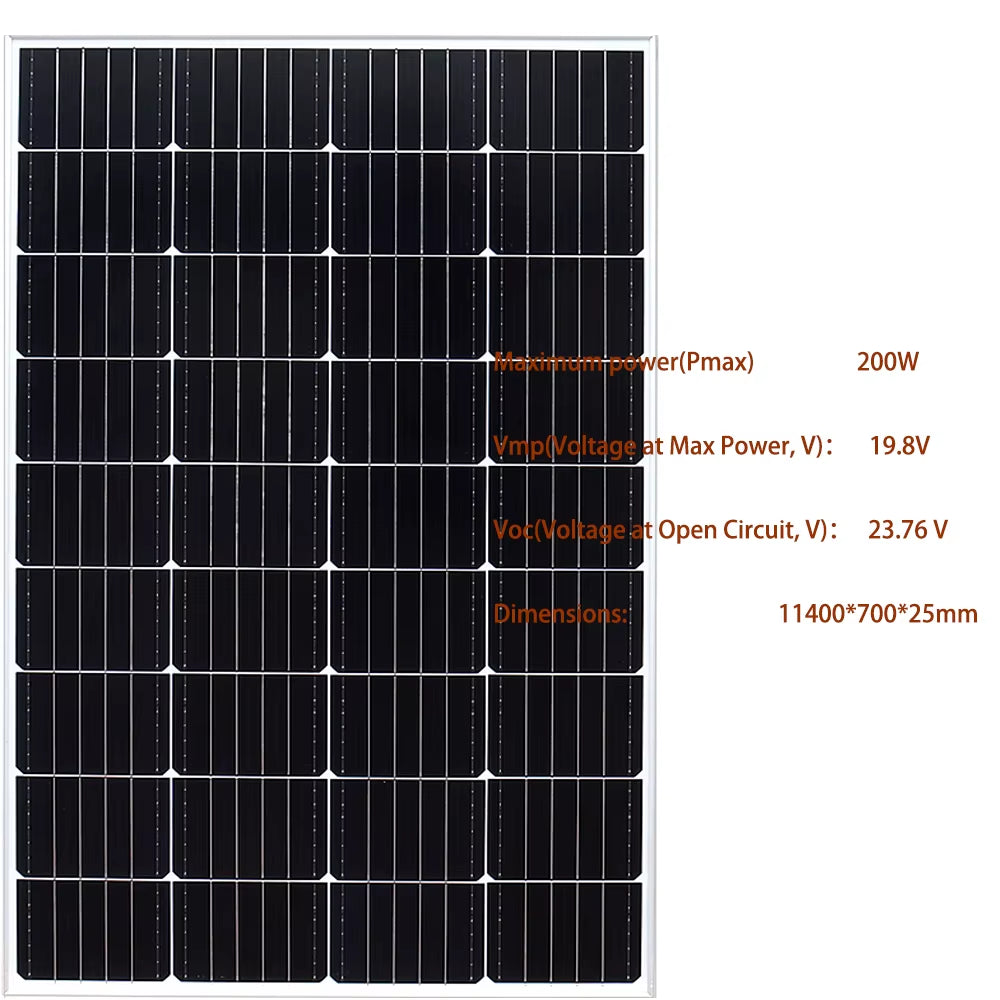

Maximum power(Pmax) 200W
Vmp(Voltage at Max Power, V): 19.8V
Voc(Voltage at Open Circuit, V): 23.76 V
Output Tolerance: ±5%
Diode: 2 By Pass
Junction Box: IP67 Rated
Temperature range: -20℃-+80℃
Frame: Heavy & Solid Aluminum Alloy
Kind of Glass: 3.2mm Tempered glass
Output Cable: 2.5mm²/14AWG 90mm/3.54＂
Dimensions: 1140*700*25mm
Weight: 7.96kg
Max System Voltage : 1000V DC(IEC)/600V DC (UL)
STC:Irradiance 1000w/m² Temperature 25℃ AM=1.5
Durable
Guaranteed positive output tolerance (0-3%); withstands high winds (2400Pa) and snow loads (5400Pa)
Corrosion-resistant aluminum frame allows extended outdoor use; the panels can last for decades
Anti-reflective, high transparency, low iron-tempered glass with enhanced stiffness and impact resistance
IP65 rated junction box provides complete protection against environmental particles and low pressure water jets
Use of solar panels for off-grid systems: need to be used together with batteries
Solar panels for grid-connected systems: need to be connected to a domestic grid system, need to be configured for grid-connected inverters
